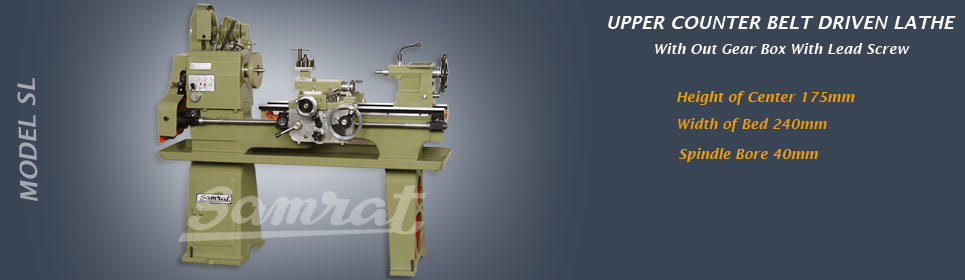

Upper Counter Belt Driven Lathe Machine (Model :-SL )
Without Gear Box With Lead Screw
Height of Center 175 mm.
Swing Over Bed 350 mm.
Swing Over Slide 190 mm.
Swing in Gap 550 mm.
Width of Bed 240 mm.
Spindle Bore 40 mm.
Spindle Nose 6 T.P.I.
Spindle Speed No. 8 45 TO 950 RPM.
Cross Slide Travel 200 mm.
Top Slide Travel 125 mm.
Tail Stock Sleeve MT - 3
Tail Stock Sleeve Dia / Travel ø 40 mm. / 130 mm.
Lead Screw ø 1 Inch -4 T.P.I.
Metric Threads No. 21 0.5 mm. To 7 mm.
Threads per inch No. 29 4 to 48 T.P.I.
Floor Space W X L 750 x 1800 mm.
Power Required 1.5 HP 1440 RPM
Net Weight KG 500 KG (4'-6")
Bed Length (feet) / Addmit Between Center (4'-6") , (5'-6") / 700 mm., 1000 mm.
STANDARD EQUIPMENT EXTRA ACCESSORIES
  • Chuck Plate
  • Reducing Sleeve
  • Dead Center
  • Square Tool Post
  • Tread Dial Inch
  • Change Gear Set.
  • Motor Rail & V Pully
  • Belt Spart Guard
  • Electric Motor, R/F Switch & Belt
  • True Chuck & Dog Chuck
  • Steady Rest & Follow Rest
  • Face Plate
  • Rear Tool Post
  • Milling Attachment
  • Taper Turning Attachment
  • Quick Change Tool Past
  • Coolant Pump, Tank and assembly
  • Key Attachment with chuck & motor safe guard
