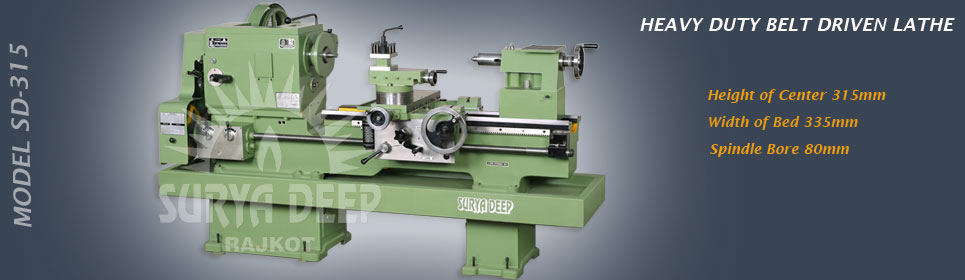

| Heavy Duty Lathe Machine (Model :-SD 315) |
|
| Height of Center | 315 mm. |
| Swing Over Bed | 630 mm. |
| Swing Over Slide | 428 mm. |
| Swing in Gap | 880 mm. |
| Width of Bed | 335 mm. |
| Spindle Bore | 80 mm. |
| Spindle Nose | 6 T.P.I. |
| Spindle Speed No. 8 | 30 TO 550 RPM. |
| Cross Slide Travel | 295 mm. |
| Top Slide Travel | 140 mm. |
| Tail Stock Sleeve | MT - 4 |
| Tail Stock Sleeve Dia / Travel | ø 40 mm. / 130 mm. |
| Lead Screw | ø 38 mm-4 T.P.I. |
| Power Required | 5 HP 1440 RPM |
| Net Weight KG | - |
| Bed Length (feet) | - |
| Space Required for 7'-0" W x L x H | 400mm X 2550mm X 1350mm |
| Addmit Between Center | 1000 mm. (7'-0") |
| STANDARD EQUIPMENT | EXTRA ACCESSORIES |
|
|
