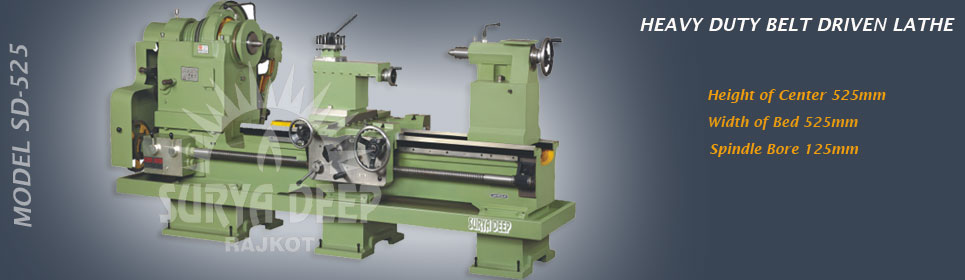

Heavy Duty Lathe Machine (Model :-SD 525)
Height of Center 525 mm.
Swing Over Bed 1054 mm.
Swing Over Slide 770 mm.
Swing in Gap 1330 mm.
Width of Bed 525 mm.
Spindle Bore 125 mm.
Spindle Nose 6 T.P.I.
Cross Slide Travel 650 mm.
Top Slide Travel 300 mm.
Tail Stock Sleeve MT - 6
Tail Stock Sleeve Dia / Travel ø 75 mm. / 250 mm.
Lead Screw ø 2 Inch - 2 T.P.I.
Metric Threads Range No. 32 28. To 1 mm.
Threads per inch No. 32 1 to 28 T.P.I.
Feeds Range No. 35 L X C 0.060 X 0.015
Floor Space W X L (10’-0") 1800 x 3750 x 1700 mm.
Power Required 7.5 HP 960 RPM
Net Weight KG -
Bed Length (feet)

(10’-0")
(12’-0")
(14’-0")
(16’-0")

(18’-0")



STANDARD EQUIPMENT EXTRA ACCESSORIES
  • Chuck Plate
  • Reducing Sleeve
  • Dead Center
  • Square Tool Post
  • Tread Dial Inch
  • Change Gear Set.
  • Motor Rail & V Pully
  • Belt Spart Guard
  • Electric Motor, R/F Switch & Belt
  • True Chuck & Dog Chuck
  • Steady Rest & Follow Rest
  • Face Plate
  • Rear Tool Post
  • Milling Attachment
  • Taper Turning Attachment
  • Quick Change Tool Past
  • Coolant Pump, Tank and assembly
  • Key Attachment with chuck & motor safe guard
