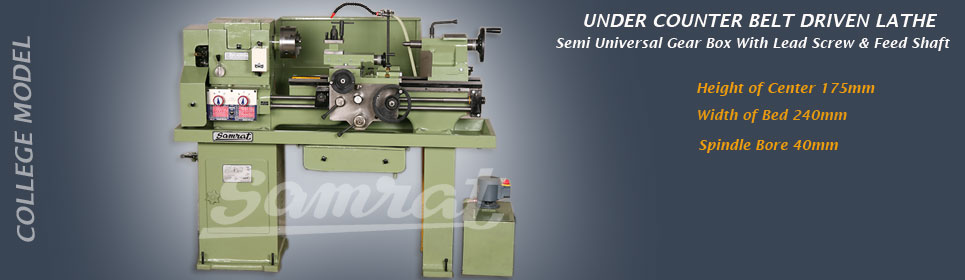

| Under Counter Belt Driven Lathe Machine (Model :-COLLAGE ) Semi Universal Gear Box With Lead Screw & Feed Shaft |
|
| Height of Center | 175 mm. |
| Swing Over Bed | 350 mm. |
| Swing Over Slide | 190 mm. |
| Swing in Gap | 550 mm. |
| Width of Bed | 240 mm. |
| Spindle Bore | 40 mm. |
| Spindle Nose | 6 T.P.I. |
| Spindle Speed No. 8 | 45 TO 900 RPM. |
| Cross Slide Travel | 200 mm. |
| Top Slide Travel | 125 mm. |
| Tail Stock Sleeve | MT - 3 |
| Tail Stock Sleeve Dia / Travel | ø 40 mm. / 130 mm. |
| Lead Screw | ø 1 Inch -4 T.P.I. |
| Metric Threads No. 42 | 0.4 mm. To 7 mm. |
| Threads per inch No. 42 | 42 to 4 T.P.I. |
| Feeds Range No. 40 L X C | 0.032 X 0.008 |
| Floor Space W X L | - |
| Power Required | 1.0 HP 1440 RPM |
| Net Weight KG | 675 KG (4'-6") |
| Bed Length (feet) Addmit Between Center | 700 mm. (4'-6") |
| Addmit Between Center | 1000 mm. (5'-6") |
| STANDARD EQUIPMENT | EXTRA ACCESSORIES |
|
|
